CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications

CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications

ব্র্যান্ড নাম: UVIR
মডেল নম্বর: RHG800049
MOQ.: আলোচনা সাপেক্ষ
মূল্য: আলোচনা সাপেক্ষে
পরিশোধের শর্তাবলী: এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
CE & ROHS
পরিচিতিমুলক নাম:
UVIR
শক্তি:
200-4000 ডাব্লু
সাক্ষ্যদান:
CE
ভোল্টেজ:
55-575V
প্রতিফলক:
সোনার / সিরামিক সাদা
টাইপ:
ইনফ্রারেড হিটার
টিউব ব্যাস:
8-14 মিমি
আইআর ব্যাস:
39-606 মিমি
উপাদান:
কোয়ার্টজ
উৎপত্তি স্থল:
গুয়াংডং, চীন
প্যাকেজিং বিবরণ:
প্রতিটি বাতি একটি সিলিন্ডারে। তারপর একটি পেশাদার পাতলা পাতলা কাঠের বাক্সে
বিশেষভাবে তুলে ধরা:

CE Certified Ring Infrared Lamp

,

99.99% Pure Quartz Infrared Heater Tube

,

Automotive Application Halogen Heating Lamp

পণ্যের বিবরণ

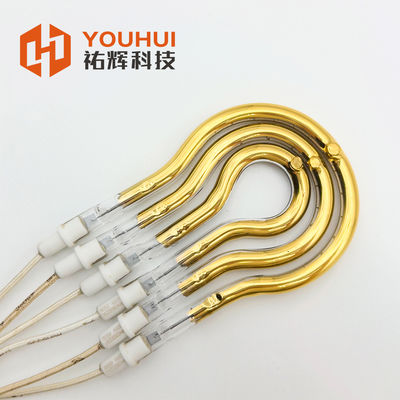

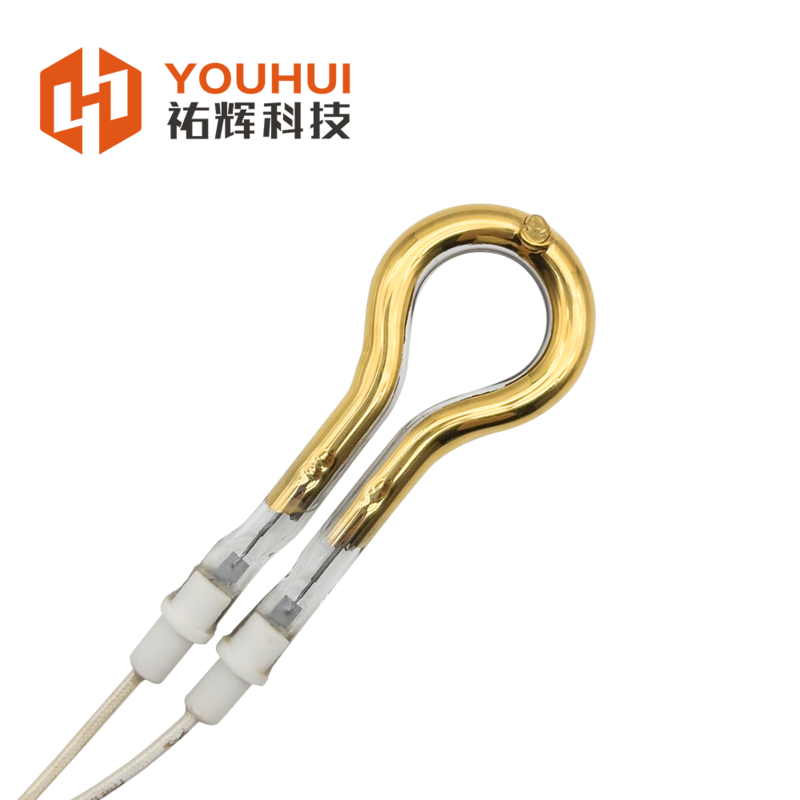

Half Gold-Plated Annular Halogen Infrared Heating Lamp Tube, Shortwave Quartz Tube
Product Specifications
Attribute Value
Brand Name UVIR
Power 200-4000W
Certification CE
Voltage 55-5757V
Reflector Gold / Ceramic White
Type Infrared Heater
Tube diameter 8-14mm
IR diameter 39-606mm
Material Quartz
Place of Origin Guangdong, China
Gold Reflector Ring Shape IR Emitter Lamp for Automotive
UVIR Infrared Lamp Advantages
  • Provides energy savings up to 50% compared to other heating technologies
  • Professional infrared technology delivers precise heating with optimal wavelength
  • Targets heat exactly where needed for maximum efficiency
CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 0 CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 1
Key Features
  • High-quality filament ensures long lifespan
  • High efficiency operation
  • Economical running costs
  • Fast response switching on and off
  • Effectively transmits and focuses heat on materials
  • 99.99% pure quartz glass tube construction
  • Completely transparent to IR radiation
  • Withstands high temperatures and thermal shock
Stock and Standard Short-Wave Ring Lamps
CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 2
Applications
CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 3
Safety Precautions
  • Operate under these conditions:
    • Relative humidity ≤ 95%
    • No flammable, explosive, corrosive gases or conductive dust
    • No violent impact or vibration
    • Working voltage ≤ 1.1 × rated value with proper grounding
    • Insulation resistance ≥ 1MΩ, dielectric strength: 2KV/1min
  • Properly position and secure heating pipes using appropriate clamps
  • For temperatures >200°C, use high-temperature wire and screw connections rated for 400°C+
  • Handle quartz glass carefully to avoid mechanical damage
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples take 5-7 days, mass production about 30 days.
Q3. Do you have any MOQ limit?
A: Minimum order quantity is typically 2 pieces per model.
Q4. How do you ship the goods?
A: Samples ship via DHL/UPS/FedEx/TNT. Large quantities via air or sea freight.
Q5. How to proceed with an order?
  1. Provide your requirements/application
  2. We provide quotation
  3. Customer confirms samples and places deposit
  4. We arrange production
Q6: How to deal with faulty products?
A: Our products undergo strict quality control. During warranty period, replacements will be sent with next order.
